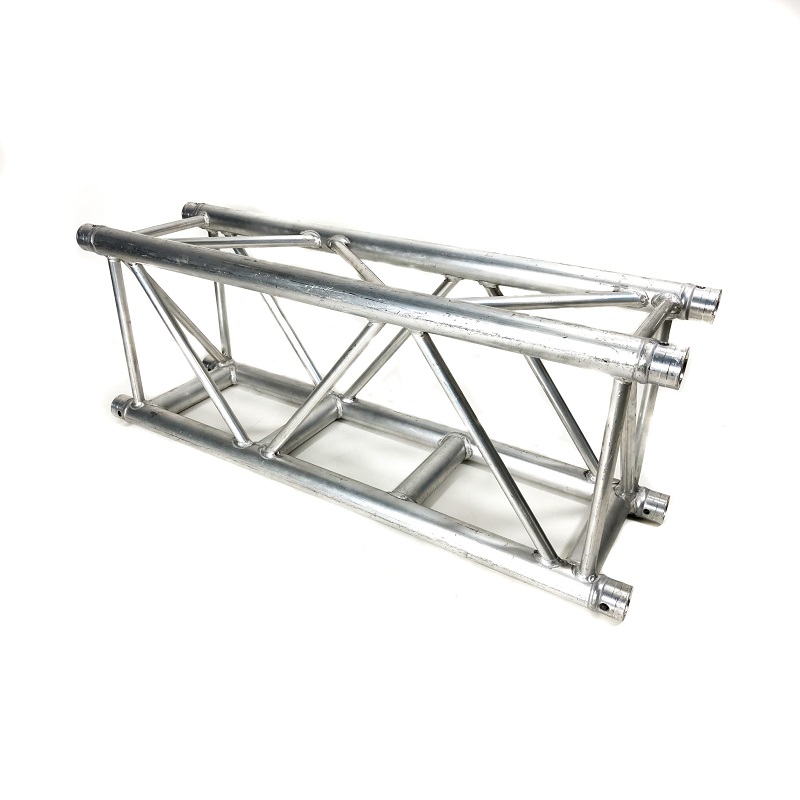

Prolyte H40R is a medium to heavy duty truss from the industry standard H40 line of products. The rectangular design of the truss provides the high loading capacity of H40v but in a smaller volume package. As with the H30 series of trusses, H40R uses the CCS6 connector system. Along with impressive loading capabilities the 3mm walls of the main tubes result in and good resistance to transport damage.
H40R has a number of innovative design features. The pin orientation means that trusses do not need to be rolled when pinning. Instead of 20×2 webbing, the bottom of the truss has 48.3mm ladder section allowing fixtures, and thus weight, to be centrally hung keeping torsion effects to a minimum by reducing one sided loading. The design of the 40R also allows H30D triangular truss to be threaded through nodes to create quick and cost effective grids.
H40R is compact enough to work in discreet corporate and fashion applications but also has the weight loading and feature set that make it perfect for larger events and heavy duty rigging jobs. Whitepd specialise in the hire of industry standard sound, lighting, video, LED walls, rigging, set and staging to the event production industry.
