Prolyte H30D Truss – hire and rental

£5.00£21.00 per day

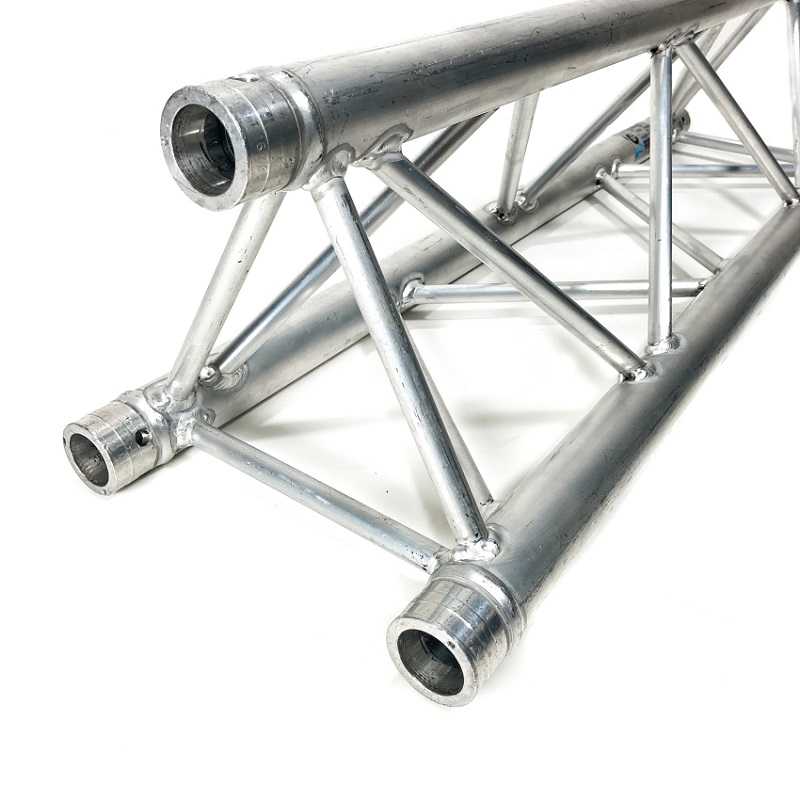

Prolyte H30d is a triangular truss product from the industry standard H30 line of products. It has a very high loading capacity versus it’s compact transport dimensions. It uses the Prolyte CCS6 coupling system and the range includes a wide range of corner products for creating structures. H30d truss is a key product in a number of the Prolyte systems product such as the MPT roof system.

The compact size and low self weight make it an excellent product for applications where overall clearance and rigging weights are a key consideration, for example in hotel conference facilities and marquee rigging. Our truss is regularly cleaned and replaced to keep it looking fresh and so it can be incorporated into set designs.

Prolyte H30d is fast and easy to assemble, it can be used in almost any event production situation. We stock a wide range of industry standard lighting rigging equipment in our  hire department from Prolyte, EXE, VMB and more.

Slots through H40r to create large grids
Low self weight – circa 5kgs per meter
Low profile and high density packing for transport
Fast & easy to assemble

Material: Aluminium
Main Tubes: 48.3mm x 3mm
Diagonals: 16mm x 2mm
Connector type: CCS6

Height: 255mm
Width:  287mm

Stock Lengths;

0.25m = 2kgs
0.5m = 3.13kgs
0.75m = 4.1kgs
1m = 5.1kgs
1.5m = 7.4kgs
2m = 9.27kgs
2.5m = 11.39kgs
3m = 13.51kgs

Truss is stored without eggs & pins and is prepped to suit the application. A wide range of corner pieces can also be supplied.

All truss, rigging and event production equipment is available to hire on a single unit basis or as part of complete event production systems (or anywhere in between).

Awards show production packages
LED wall rigging
Prolyte H40r truss grid
Event rigging services
Stage lighting equipment hire

Description

Prolyte H30d is a triangular truss product from the industry standard H30 line of products. It has a very high loading capacity versus it’s compact transport dimensions. It uses the Prolyte CCS6 coupling system and the range includes a wide range of corner products for creating structures. H30d truss is a key product in a number of the Prolyte systems product such as the MPT roof system.

The compact size and low self weight make it an excellent product for applications where overall clearance and rigging weights are a key consideration, for example in hotel conference facilities and marquee rigging. Our truss is regularly cleaned and replaced to keep it looking fresh and so it can be incorporated into set designs.

Prolyte H30d is fast and easy to assemble, it can be used in almost any event production situation. We stock a wide range of industry standard lighting rigging equipment in our  hire department from Prolyte, EXE, VMB and more.

Additional information

Length

0.25m, 0.5m, 0.75m, 1m, 1.5m, 2m, 2.5m, 3m
