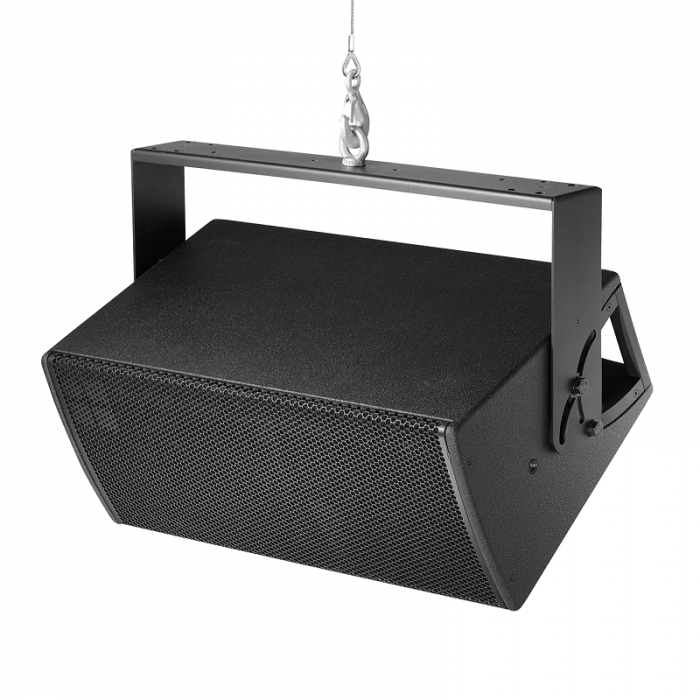

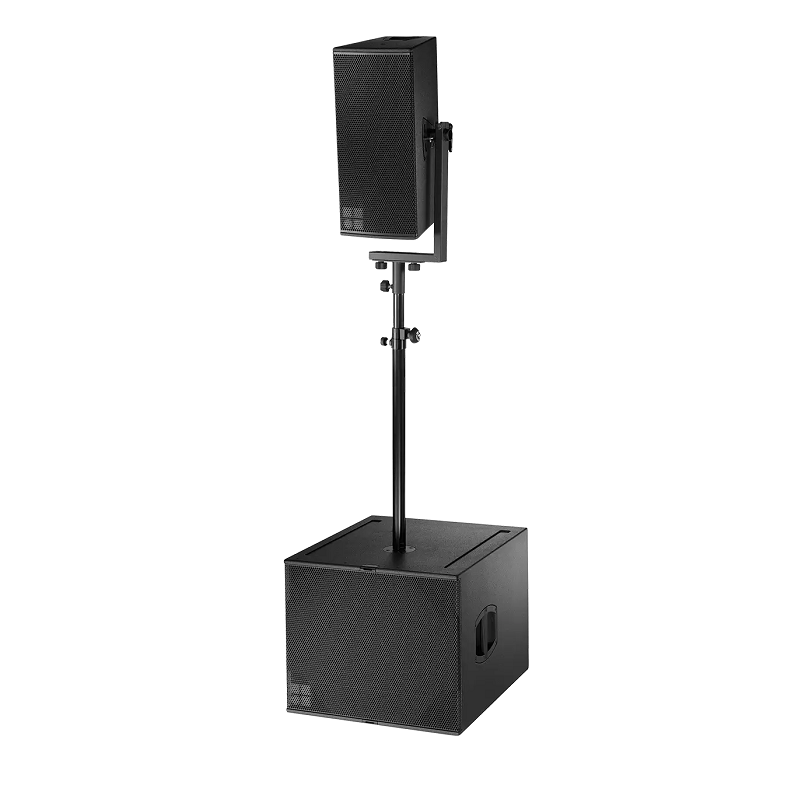

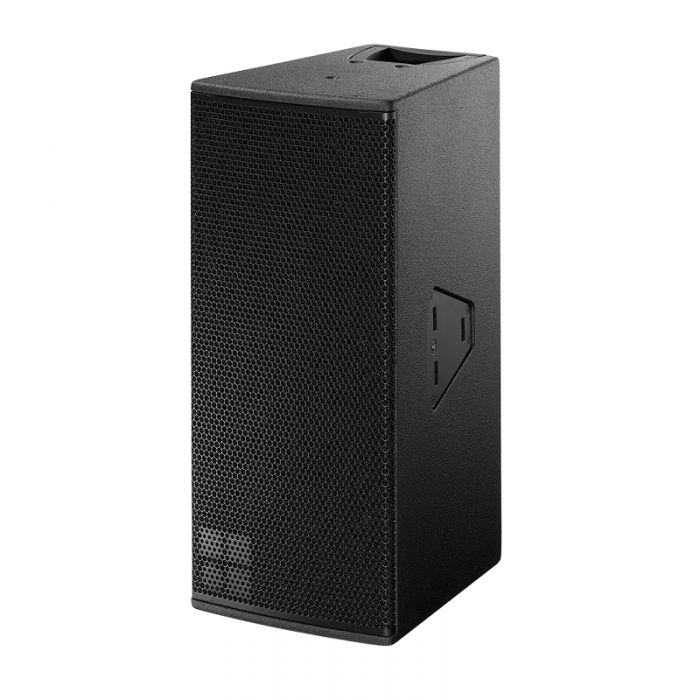

The D&B Y10p is a high performance 2-way passive point source loudspeaker that can be used in either horizontal or vertical orientation. It can be pole mounted or flown using dedicated D&B hardware. In standard mode the Y10p has a frequency response of 59Hz to 18kHz with a 400/1600W power handling capacity and can be used with either our D20 or D80 amplifier, producing a max SPL of 137dB. 2 of these boxes can be used per amplifier channel.
The Y10p features 2 x 8″ drivers with neodymium magnets and a 1.4″ exit compression driver mounted on a CD horn. It has a nominal dispersion of 110 x 40 rotatable through 90 degrees. The sophisticated horn geometry coupled with the bass-reflex port design offers full bandwidth capabilities with and extended LF output.
The D&B Y10p has an incredibly wide and smooth dispersion, it is an excellent solution for events that are in a landscape layout. The D&B Y-series range are a very capable set of speakers in a small format, given their performance. We continually find them to be a popular product with our engineers and clients alike. All cabinets from the Y series are available on a dry hire basis or as part of full production systems.
