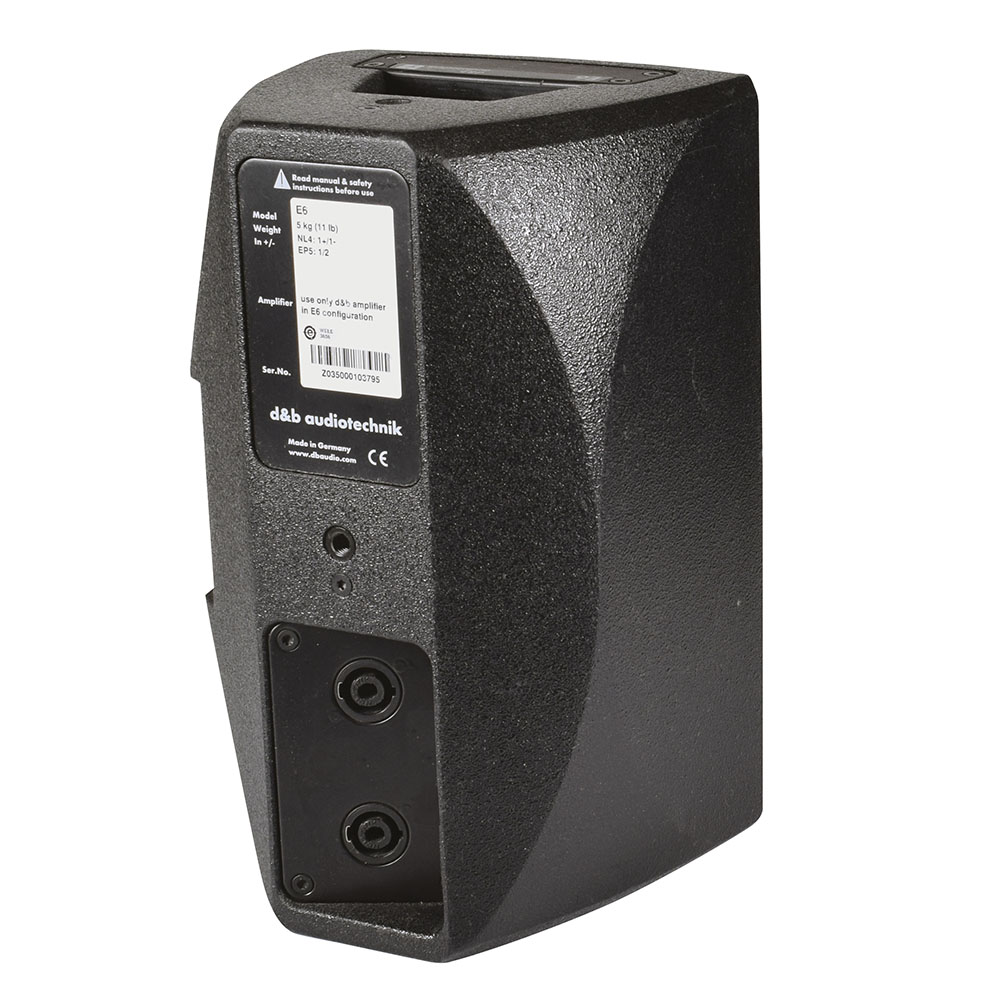

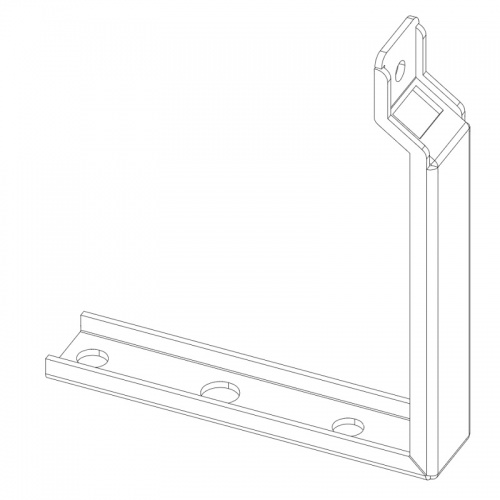

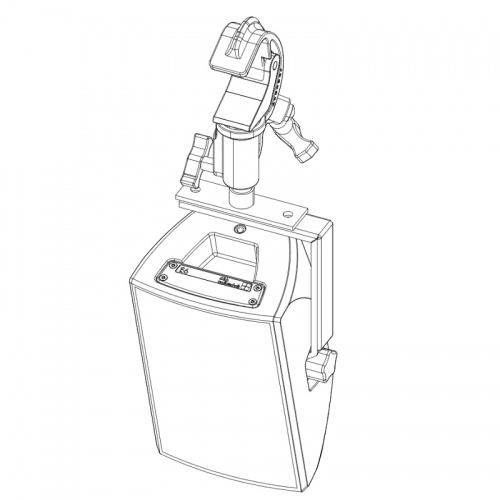

The D&B E6 is a 2-way compact coaxial loudspeaker with a passive crossover network that can be mounted either horizontally or vertically. They can be flown or stand mounted using the Z5377 swivel bracket. In standard mode the E6 has a frequency response of 85Hz to 20kHz and a 150/800W power handling capacity. The E6 can be used with either the D20 or D80 amplifier, producing a max SPL of 123dB.
The E6 features a 6.5″ driver with neodymium magnet and a 1″ exit compression driver with 1.75″ coil that is mounted to a CD horn – with a nominal dispersion of 100° x 55°. The horn is also rotatable through 90 degrees without the need for tools. They can be used stand-alone or accompanied by subwoofers from the E-Series such as the E12X or the wider D&B range. The loudspeaker cabinet is weather protected and suitable for outdoor use as standard.
These loudspeakers are suited to a wide range of applications such as speech and music reinforcement in theatres, conferences and industrial presentations. They are ideal for surround sound, delay’s and even discreet stage monitoring where high SPL’s are not required. Whitepd’s E6’s are available to hire in black and white and are supplied in touring flight-cases or 2 or 6 units – depending on requirements.
