D&B D20 – hire and rental

£80.00 per day

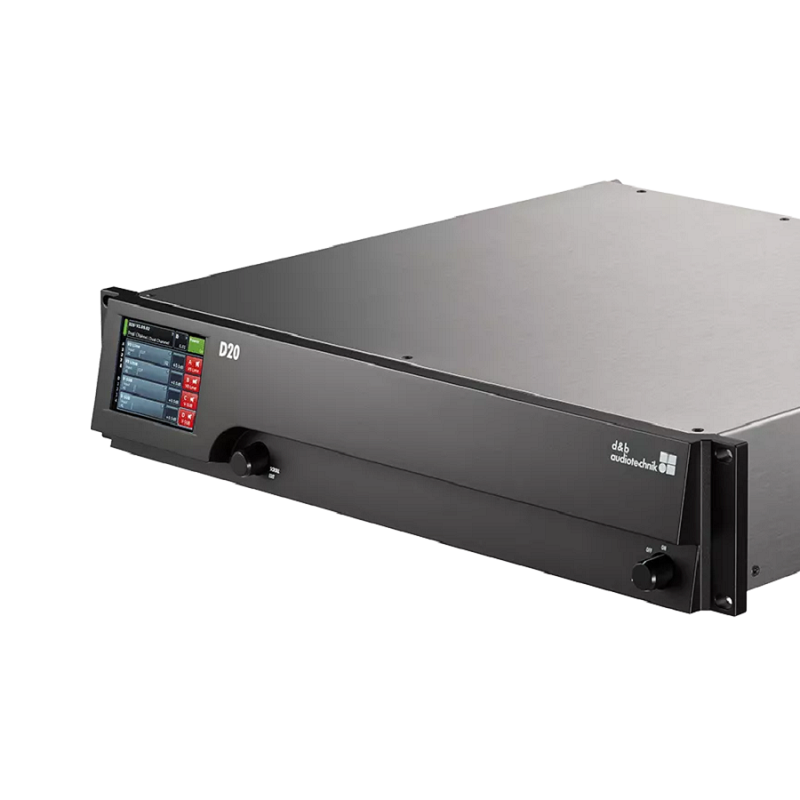

The D&B D20 is a four channel amplifier perfect for mobile applications requiring low to medium SPL. It has configurations for all the D&B loudspeakers in our stock, except the SL-GSUB. All speakers, configurations and settings can be easily accessed from the 3.5 inch touch screen on the front of the unit.

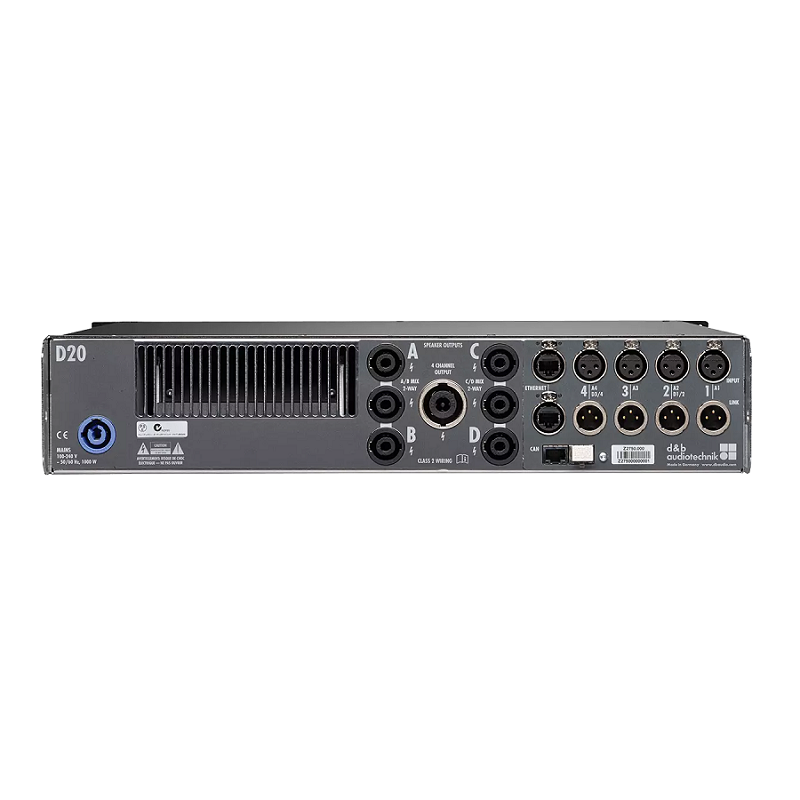

The D20 has a a flexible set of on board connections and can work with a combination of analog and digital inputs. Outputs can be either per channel (on NL2 connections) as mix-top sub (on NL4 connections) or all 4 amplifier channels directly out via the NL8 connector. The D20 has a vast array of internal processing options including up to 10 seconds of output delay.

The D20 is a high quality versatile amplifier, suitable for powering loudspeakers in most event situations such as conferences, award shows and exhibitions. Our hire and rental stock includes a full range of sound, lighting, video, set, staging and rigging equipment.

4 channel amplifier & DSP
3.5″ Colour TFT touchscreen
Drives all D&B products (except SL, J, M2)
All features accessible without a laptop
Compact and lightweight

Input latency: 0.3 msec
Delay settings: 0.3-10000 msec
Sampling rate: 96kHz/27 Bit ADC/24 Bit DAC
Sampling digital AES/EBU: 48kHz/96kHz
Maximum output power per channel (THD+N < 0.5%, all channels driven)
– CF = 6 dB at 4 / 8 Ω: 4x 1000/800 W
– CF = 12 dB at 4 / 8 Ω: 4x 1600/800 W

Height: 88mm
Width:  480mm
Depth:  460mm
Weight: 10.8kg

13A to Powercon
Available as standalone units or as part of larger touring systems

Digital Audio Systems
Fashion Shows
Exhibitions
Sporting events
Full Event Production

Description

The D&B D20 is a four channel amplifier perfect for mobile applications requiring low to medium SPL. It has configurations for all the D&B loudspeakers in our stock, except the SL-GSUB. All speakers, configurations and settings can be easily accessed from the 3.5 inch touch screen on the front of the unit.

The D20 has a a flexible set of on board connections and can work with a combination of analog and digital inputs. Outputs can be either per channel (on NL2 connections) as mix-top sub (on NL4 connections) or all 4 amplifier channels directly out via the NL8 connector. The D20 has a vast array of internal processing options including up to 10 seconds of output delay.

The D20 is a high quality versatile amplifier, suitable for powering loudspeakers in most event situations such as conferences, award shows and exhibitions. Our hire and rental stock includes a full range of sound, lighting, video, set, staging and rigging equipment.

Additional information

Weight 10.8 kg
Dimensions 460 × 482.6 × 89 mm
