Analog Way Zenith 200

£1,400 per day

The Zenith 200 is a powerful 4K60 multi-screen and multi-layer presentation switcher offering all the real-time video processing features you need – including true seamless switching on all layers, elegant borders and transitions, alpha channel support, Luma and Chroma keying, custom output formats and AOI. It’s based on Analog Way’s class-leading 5th generation scaling engine, featuring ulta-low latency 4K60 10-bit 4:4:4: image processing, uncompromising video quality and HDCP 2.2 compatibility.

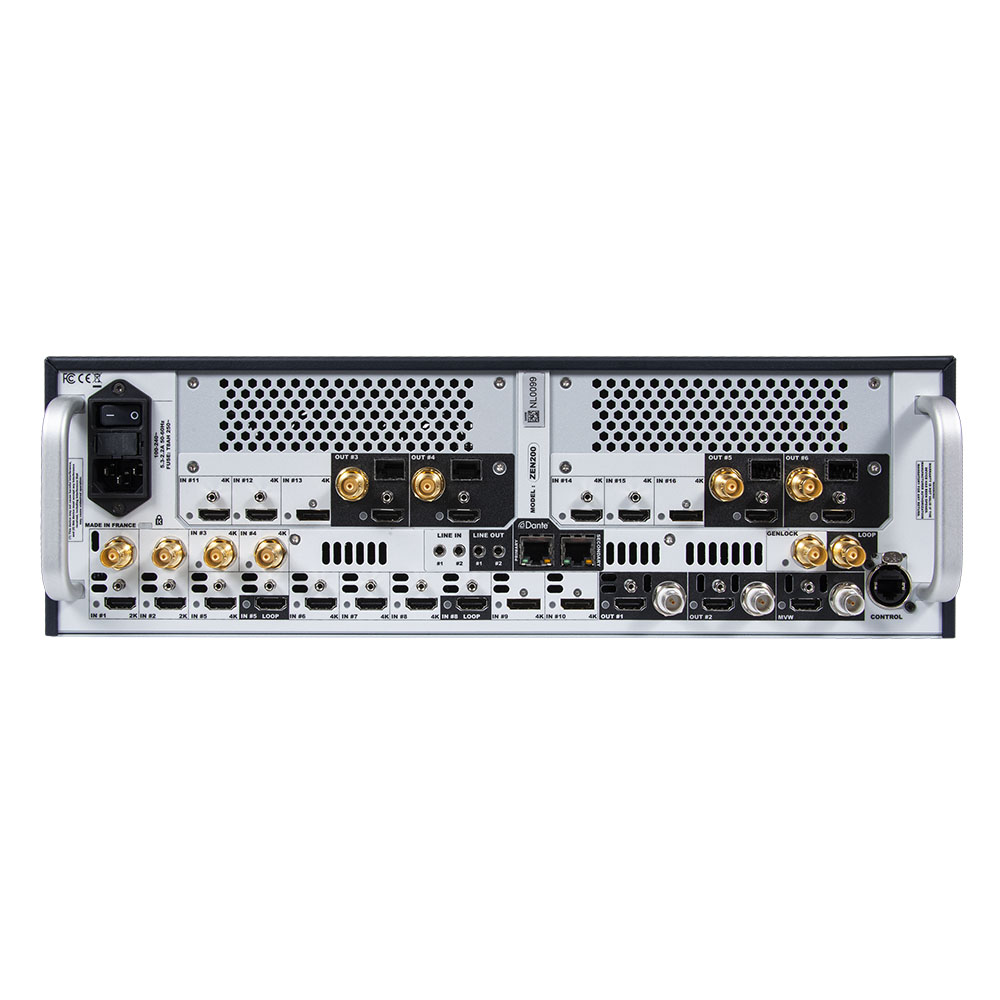

Equipped with 16 inputs, including 14 4K60 inputs and two 1080 inputs with user-selectable HDMI & SDI connectors, the Zenith 200 also features six independent 4K60 outputs, each mirrored with HDMI and SDI connectors. Four of these outputs are additionally equipped with SFP+ connectors.

The Zenith 200 also offers livestreaming functionality – streaming any input or output to an online web service such as YouTube or Twitch, or it can directly send the content to software such as OBS Studio for recording or custom livestreaming. Based on an extremely robust FPGA-based hardware platform, the Zenith 200 is ideal for the most demanding environments, from major live events to 24/7 permanent LED wall control.

For more information on Analog Way Zenith 200 hire please contact info@whitepd.com

16 inputs including 14 x 4K60 and 2 x 2K60
6 x 4K60 outputs
Up to 8 x 4K split layers or 4 x 4K mixing layers
Additional still image foreground layer available on all screens
1 dedicated multiviewer with resizable widgets, including clocks, countdown and timers
Dedicated BNC with loop for Glenlock, Blacburst and tri-level sync

16 inputs: supports custom input formats up to 4096 width / height
6 outputs: supports custom output formats up to 4096 width / height
1 multiviewer output: 27 resizable widgets – customisable layouts with 20 memories
Native 4K60 10-bit 4:4:4 ultra-low latency video processing
High frame rate up to 144Hz
Up to 8 split layers (or 4 mixing layers)
RTMP/RTMPS livestreaming of any input or output

Height: 133mm
Width: 482mm
Depth: 533mm
Weight: 12.8kg

Can be hired alone or configured with Analog Way RC400T, Shot Box or Control Box

Conferences and awards shows
LED video wall processing
Live event video systems
PowerPoint, Keynote and event graphics
