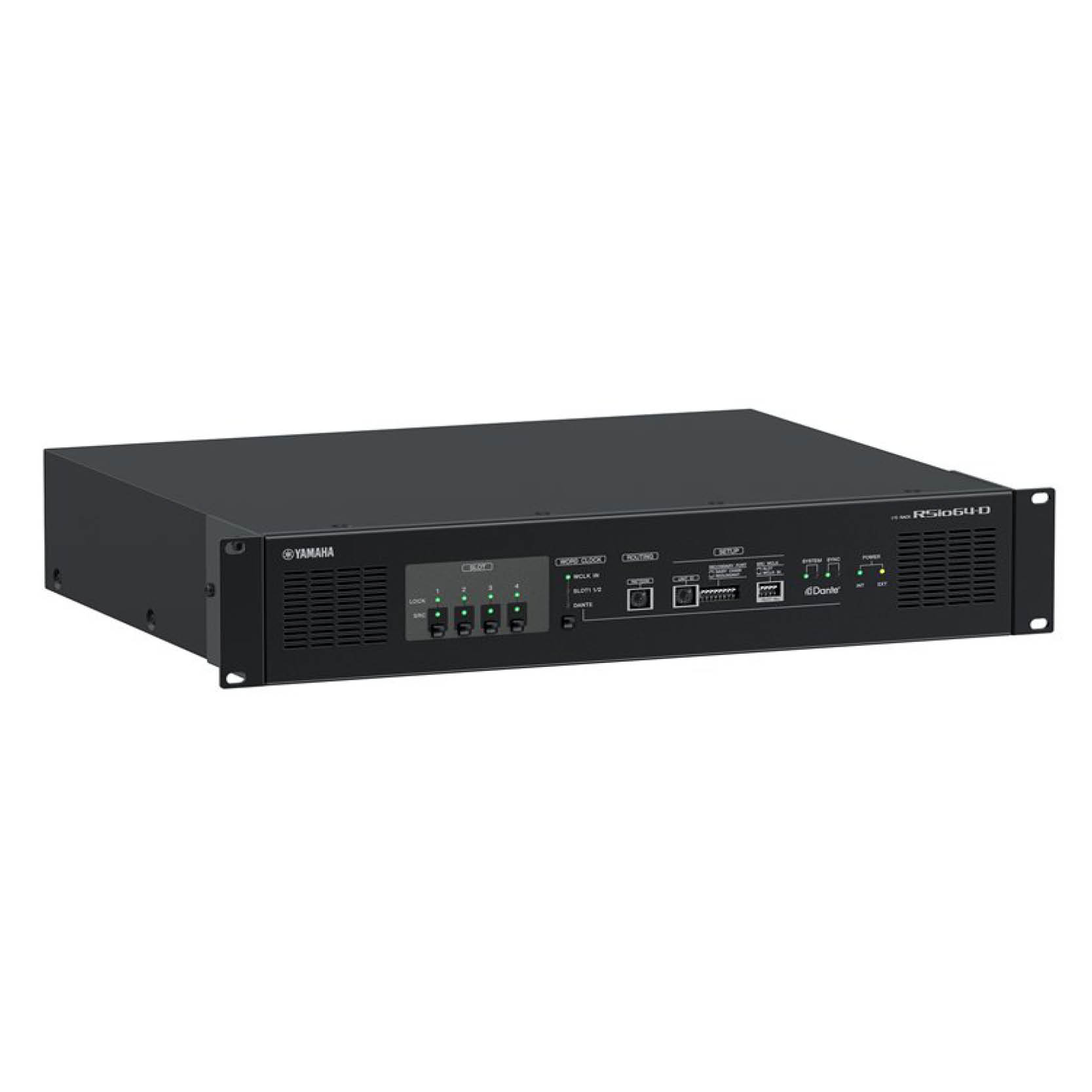

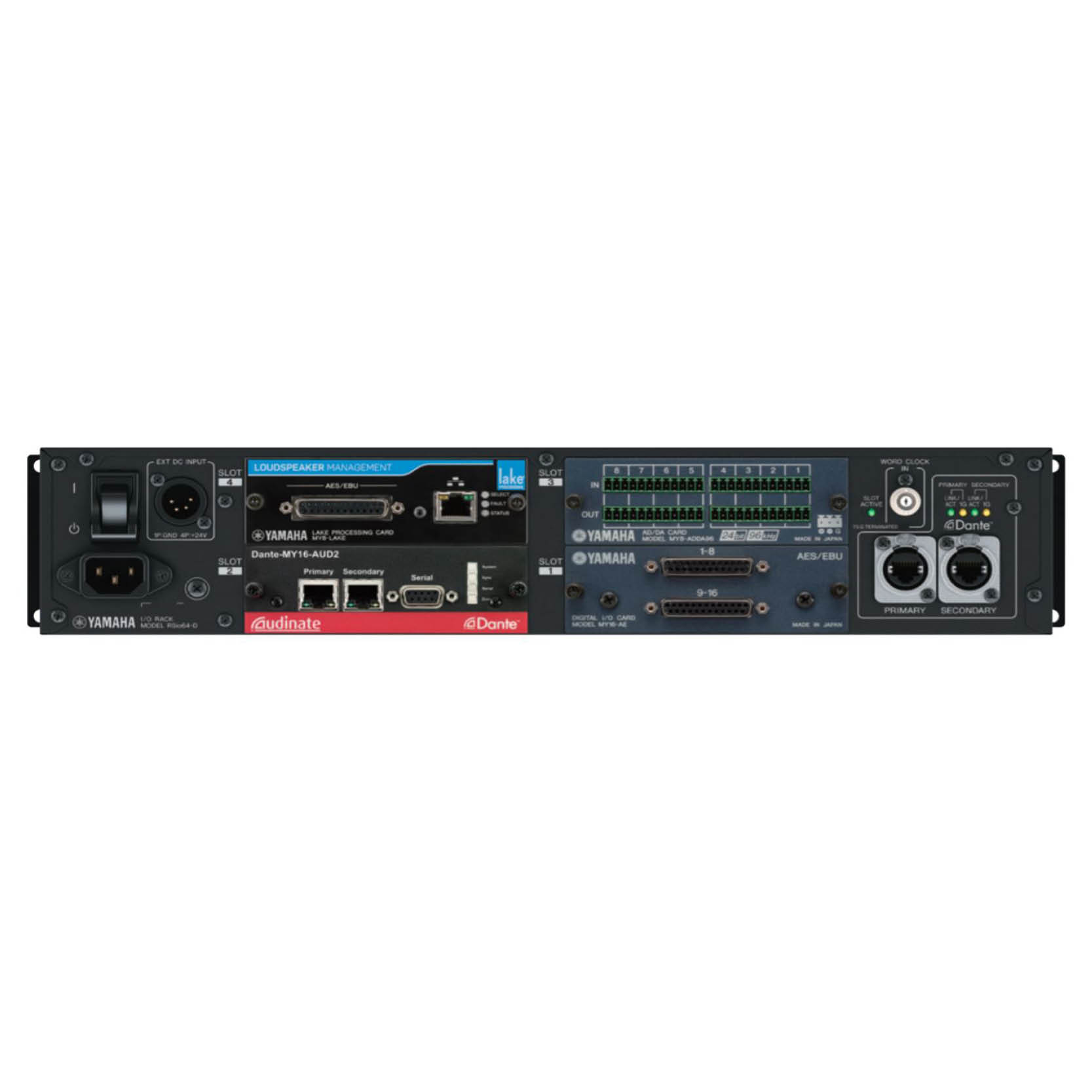

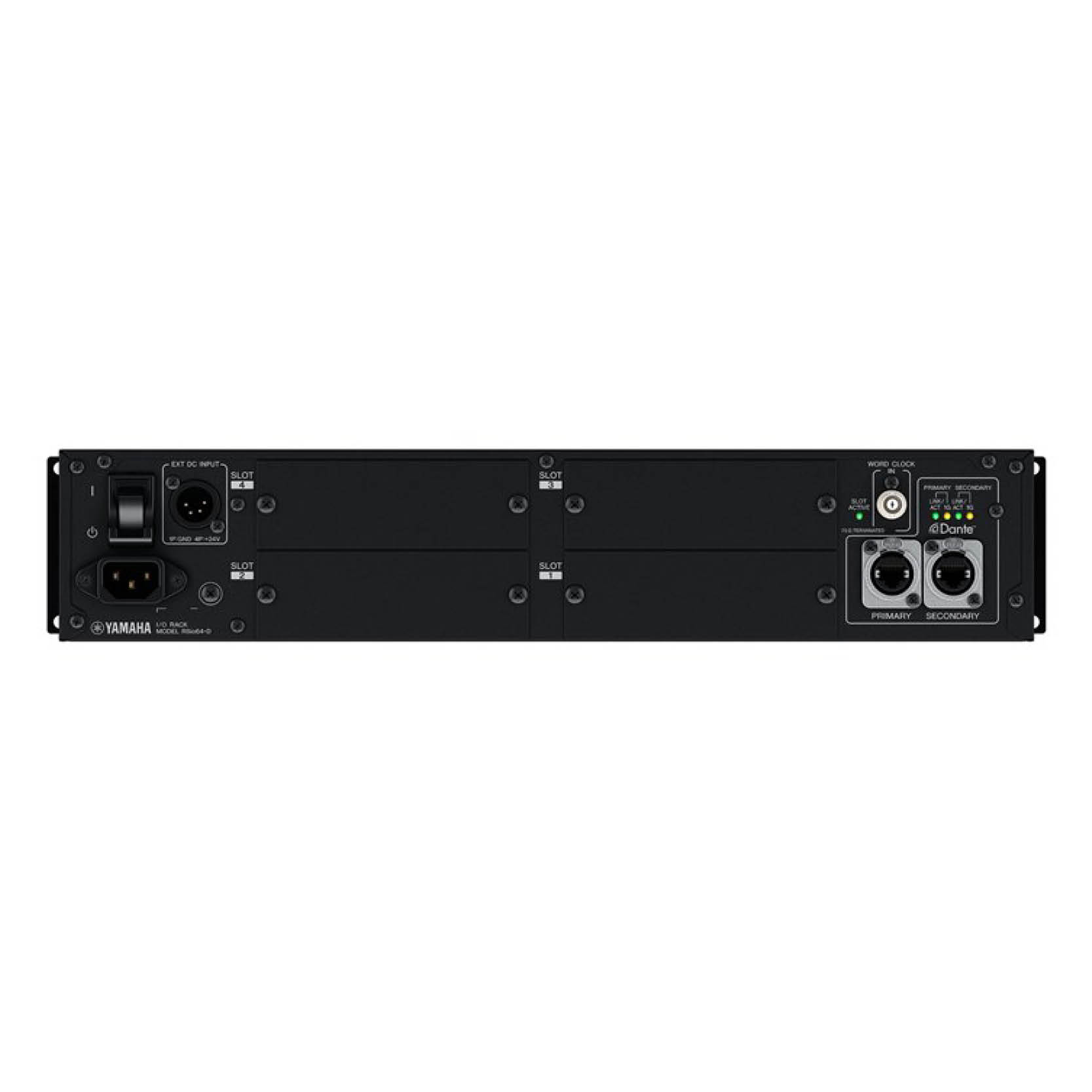

The Yamaha RSio64-D is a 2U remote Dante interface offering 64 inputs & outputs, depending on configuration. It accepts up to four Yamaha Mini YGDAI interface cards which cover a wide range of format, sample rate and connection types. Each slot includes a dedicated SRC to allow any mixture of cards to be used.
The unit can be controlled either by the front panel, remotely by the QL & CL consoles and can also be patched via the Dante network manager software. The Dante network audio protocol developed by Audinate allows audio professionals to use a wide array of components from a range of manufacturers alongside this interface and any other Dante equipped items. As with all Yamaha Dante equipment the RSio64-D has both primary and secondary ports to give redundancy against cable or network switch faults.
The Yamaha RSio64-D’s are included in a number of our standard racks and while they’re most at home within a Yamaha digital set up – such as with a QL1, they can be used with any Dante equipped audio systems.
