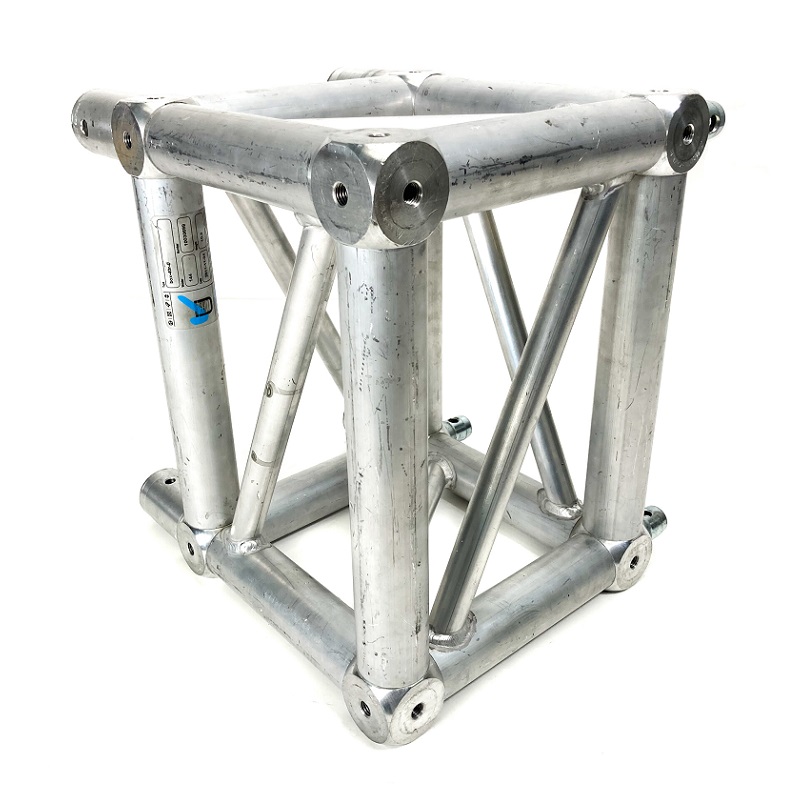

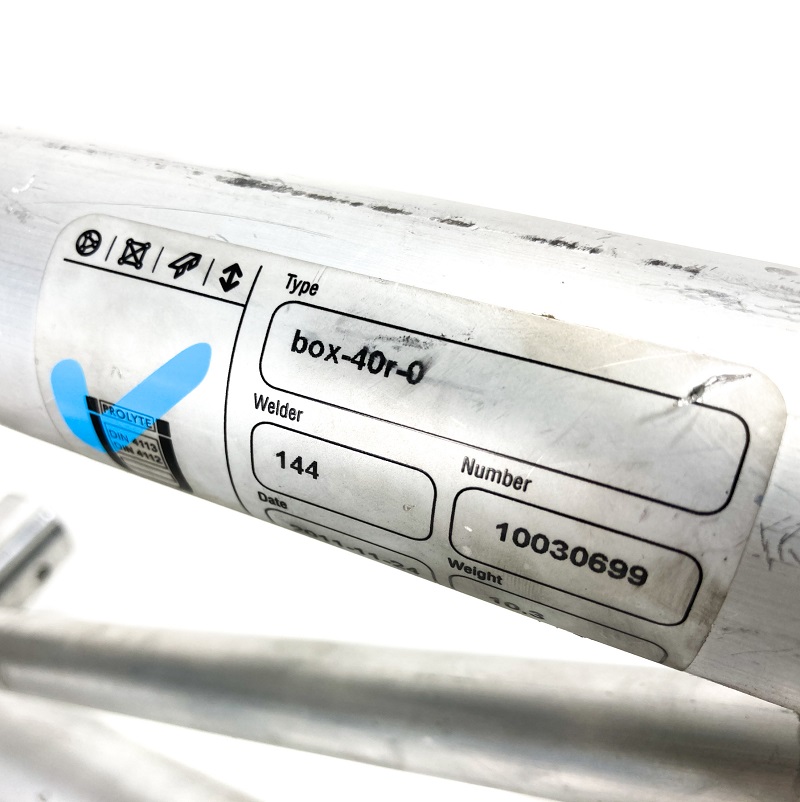

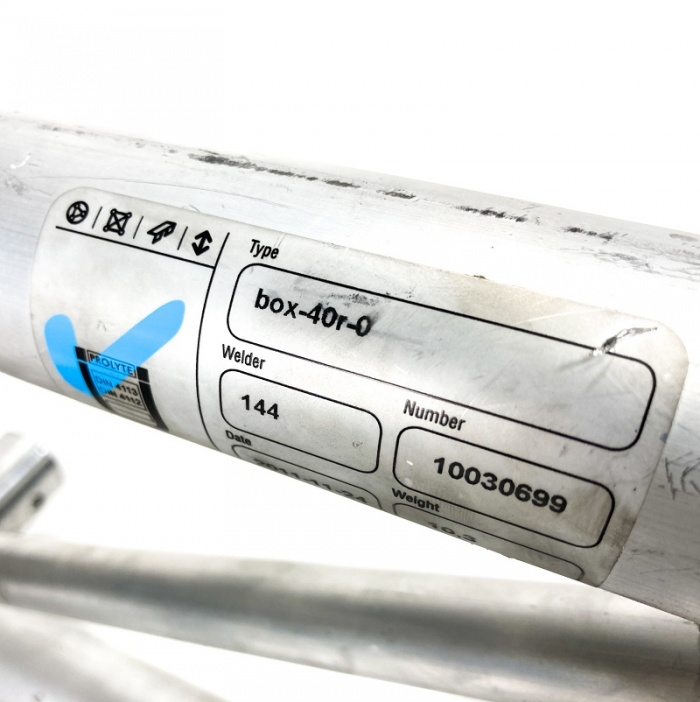

The Prolyte Box Corner 40R is a configurable corner block for the H40R truss series. The 40R corner is manufactured from specially designed profile sections that are bolted to ensure optimum loading. These box corners make fully fledged construction elements of an H40R truss system. When used as a ground support system the H40R uses H30V as it’s vertical leg sections.
Prolyte H40R truss has a number of innovative design features. The underside of the truss has 48.3mm ladder section allowing fixtures to be centrally hung helping to keep torsion effects to a minimum, by reducing one sided loading. The pin orientation means that trusses do not need to be rolled when pinning. The design of the 40R also allows H30D triangular truss to be threaded through nodes to create quick and cost effective grids.
Prolyte H40R is fast and easy to assemble, it can be used in almost any event production situation. Box corners offer the most flexible solution for rental as they can be adapted from 2 to 6 way options simply by adding addition connector sets. We hold male and female spigot options for these corners to give either a flush connection or a 75mm gap which adds flexibility when fitting into tight venues.
