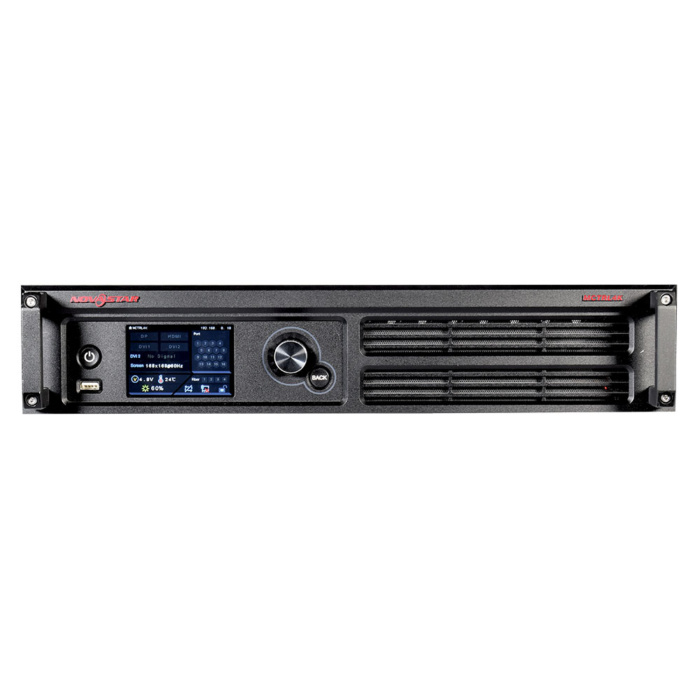

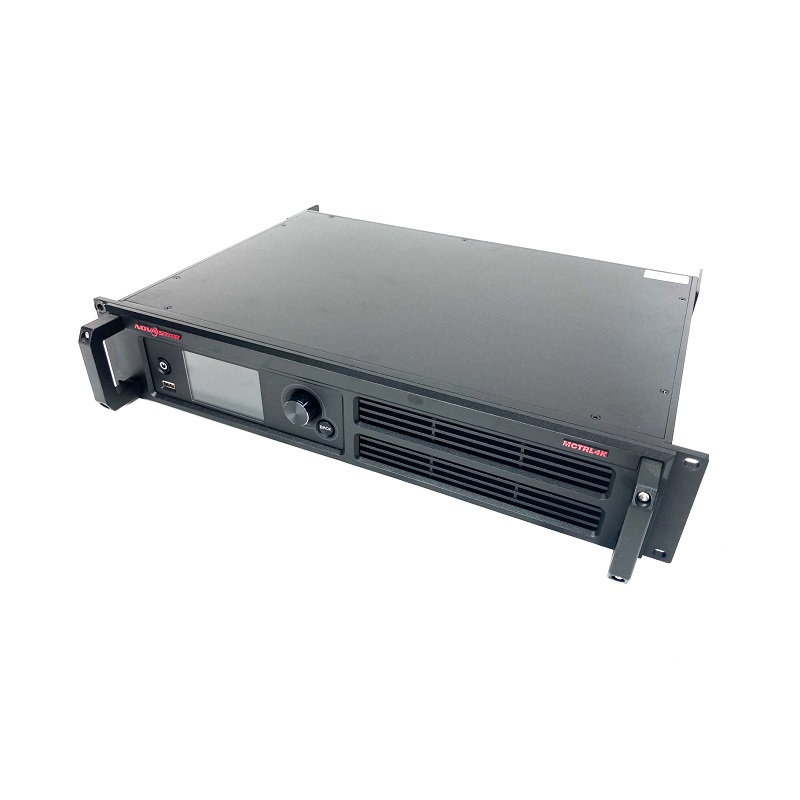

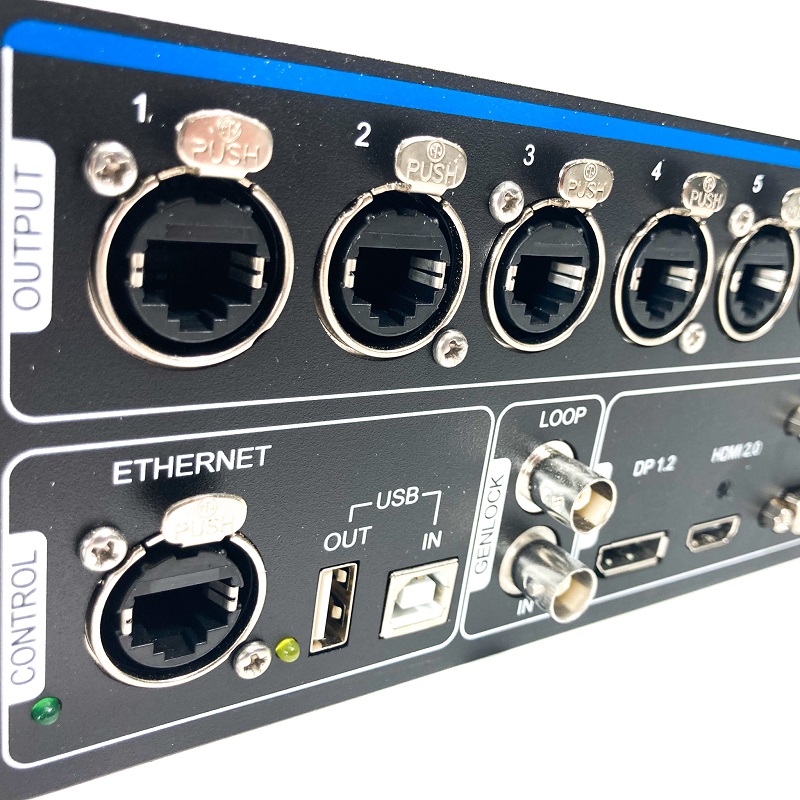

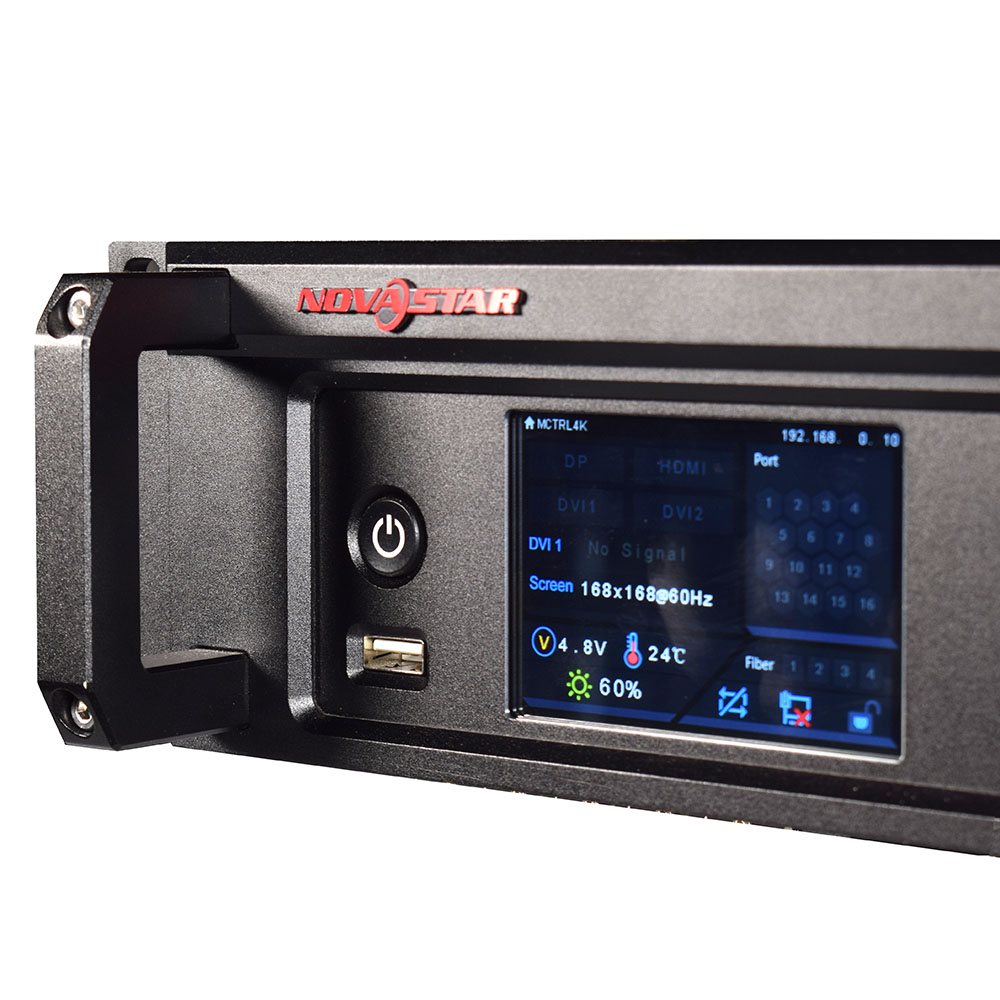

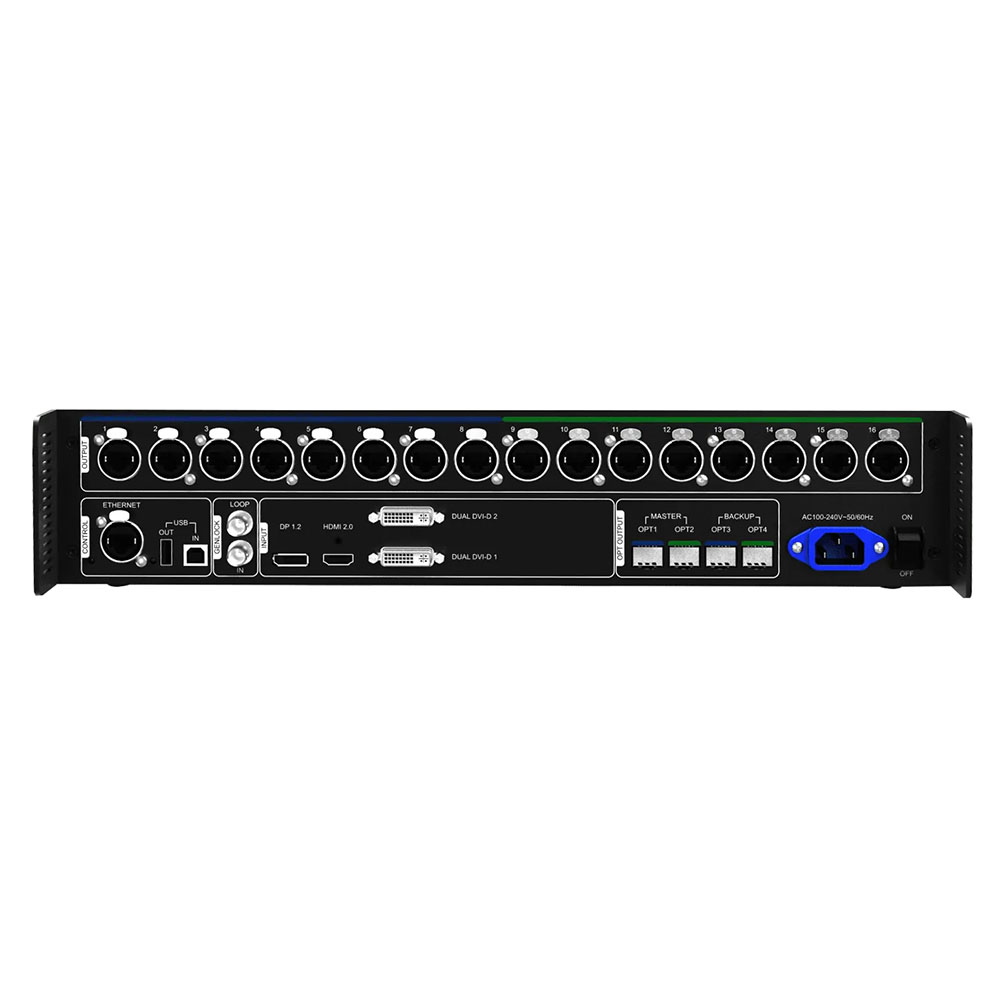

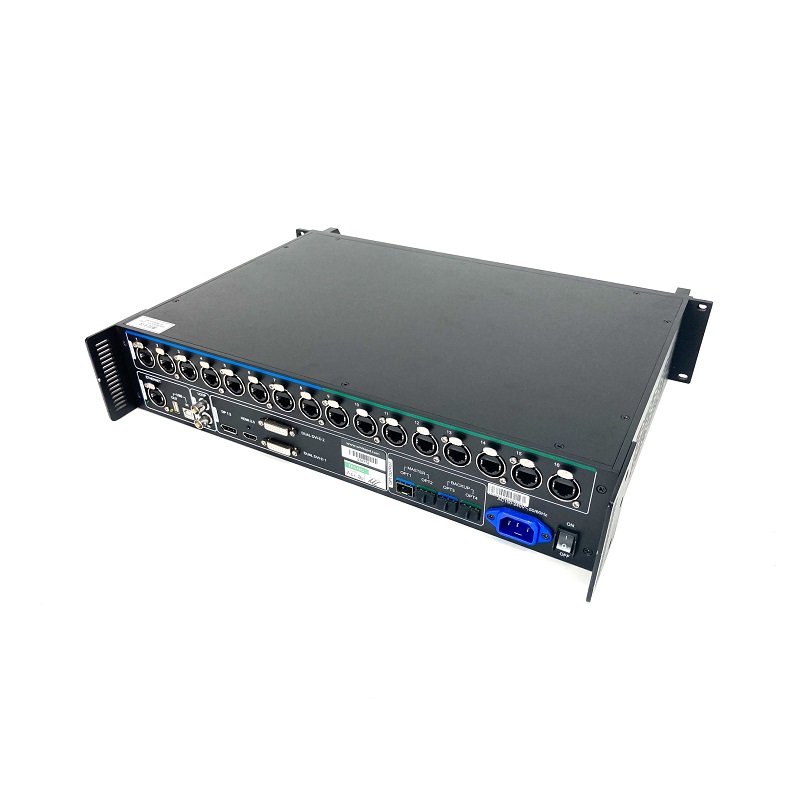

The NovaStar MCTRL4K is a controller to meet the configuration and drive requirements of large LED video walls and displays. The MCTRL4K features very low latency of less than 1ms. It supports a wide variety of video formats, while also supporting HDR function, both in HDR10 and HLG standards. Users are able to control screen configuration via a web interface. The Ethercon connections on the rear of the unit ensure reliable connection to the video wall.

The DVI input has a bit depth of 8 and supports a maximum resolution up to 3840×1080@60. The HDMI input can operate either 8 or 10bit while supporting a maximum resolution of 4096×2160@60. The MCTRL4K has 16 ethernet ports with a maximum load capacity of 650k for 8bit connection and 320k pixels when using 10/12bit.

When two Novastar MCTRL4K are linked, users have a fully backed-up control system for over 300 x Absen 2.9mm LED panels. Whitepd specialise in the supply of LED video walls for events. In addition we also hire audio, lighting, rigging, set and staging equipment.
