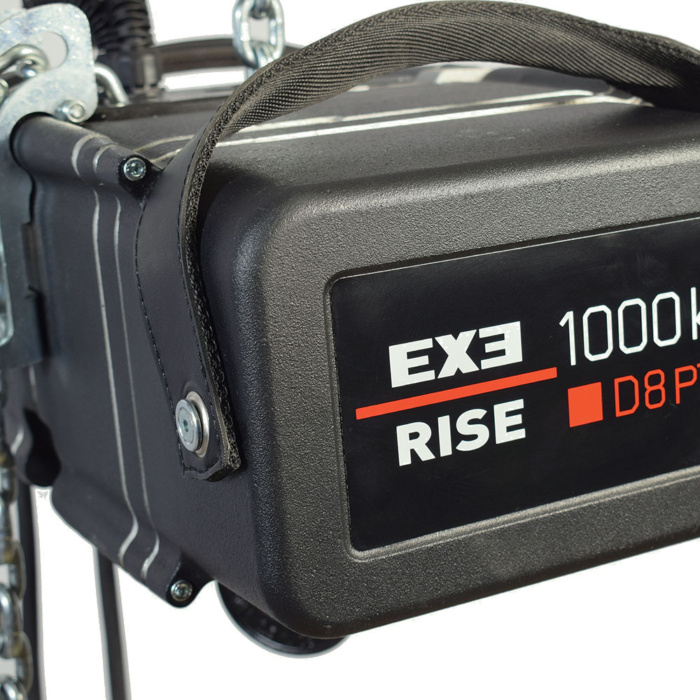

The EXE Rise 1000kgs d8+ motor is based around the EXE Large chassis. The frame covers both their 1T single fall motor and the 2T double fall unit. An LVC system motor for entertainment and exhibition rigging, the 1000kgs hoist has a 26m, reassuringly chunky, 8x24mm DIN EN818-7 lift chain fitted. The combined weight of the body, chain and bag just shy of 80kgs.

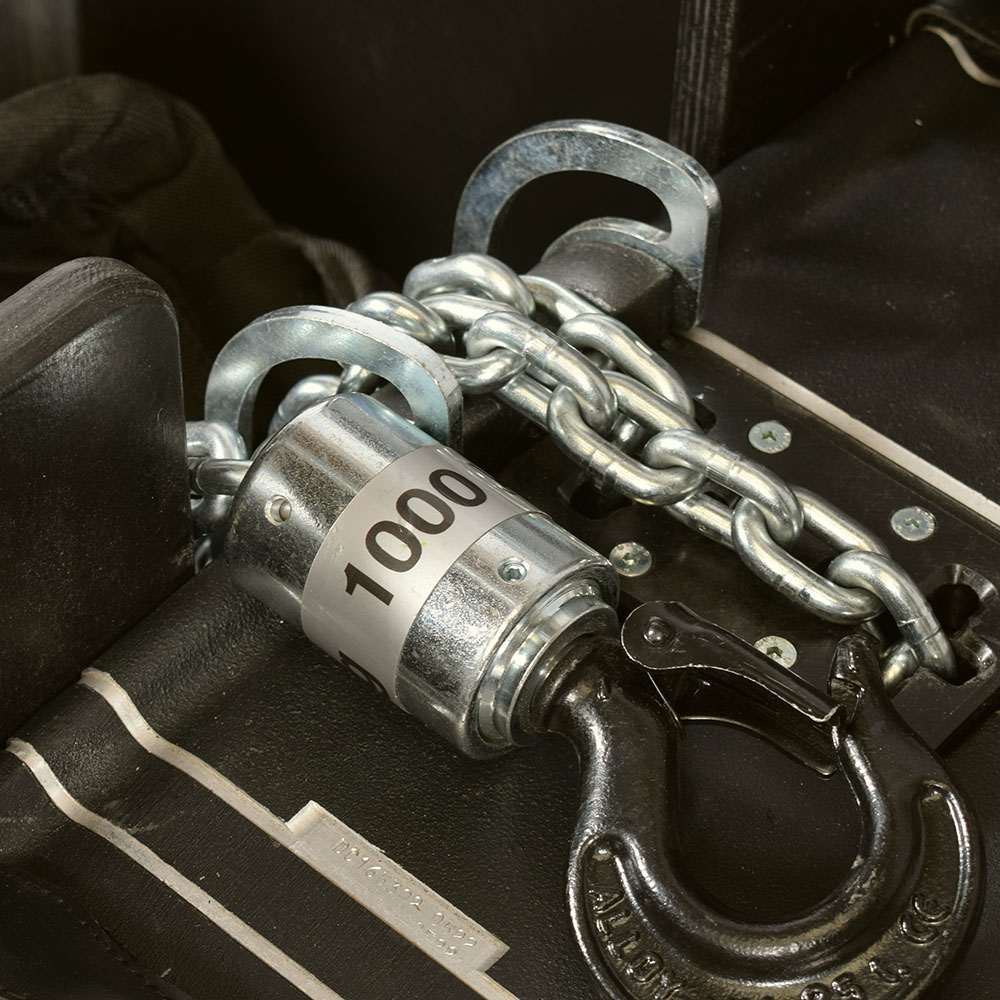

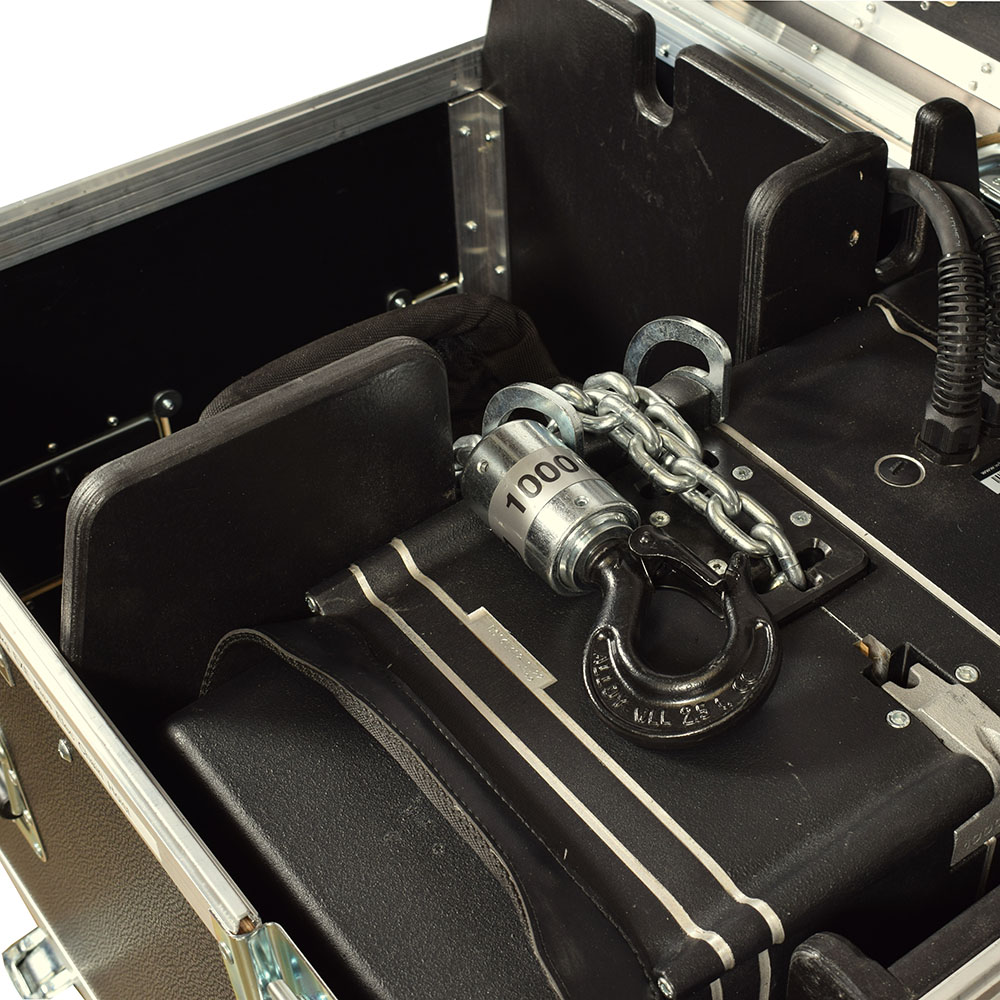

These motors have a swivel hook both on the body & chain and for increased safety and reliability the clutch is positioned on the motor shaft in front of the motor assembly, outside of the load path. A custom chain-bag guide allows the motor to be used in self climbing orientation or motor up as required. For smaller lifts WhitePD also hold EXE motors in 500kgs and 250kgs versions.
With a 1T capacity and D8+ 8:1 safety factor this motor is ideal for larger lifts such as big LED walls and Prolyte MPT based tower and roof systems. They have an IP55 rating as standard and can also be supplied with rain jackets for extra protection. All EXE motors @ WhitePD are the LVC (low voltage control) versions and our motor control equipment is from Kinesys and EXE. Whitepd specialise in the hire of equipment and supply of production services to the event industry. we cover audio, lighting video, LED walls, rigging, set and staging.
